Featuer

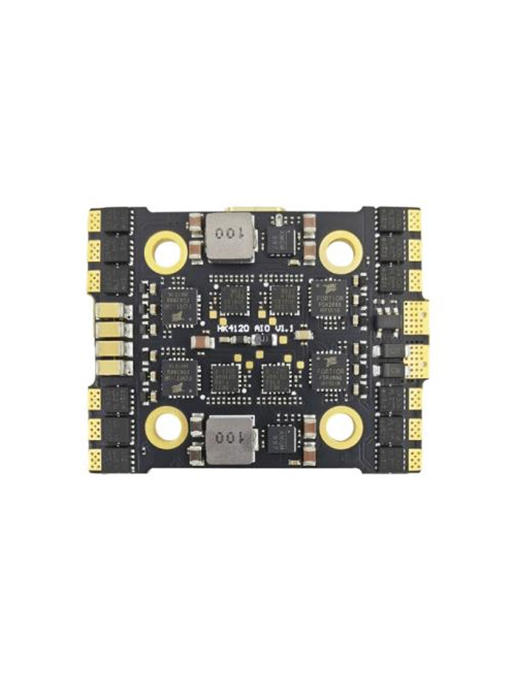

The PCB adopts 2oz thick 6-layer high-end copper layer, which has stronger overcurrent capacity and good heat dissipation.

High current resistance of 30V, long service life and high load capacity.

Using industrial grade LDO, high temperature resistance.

Using high-quality Japanese Murata capacitors, strong filtering performance.

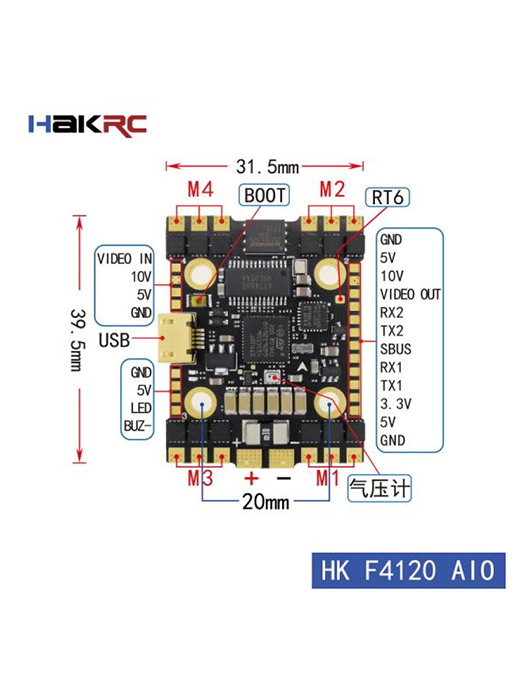

Size: 39.5. * 31.5mm (20 * 20mm mounting hole)

Packing size: ø63 * 32mm

Net Weight: 10g

Package Weight: 27g

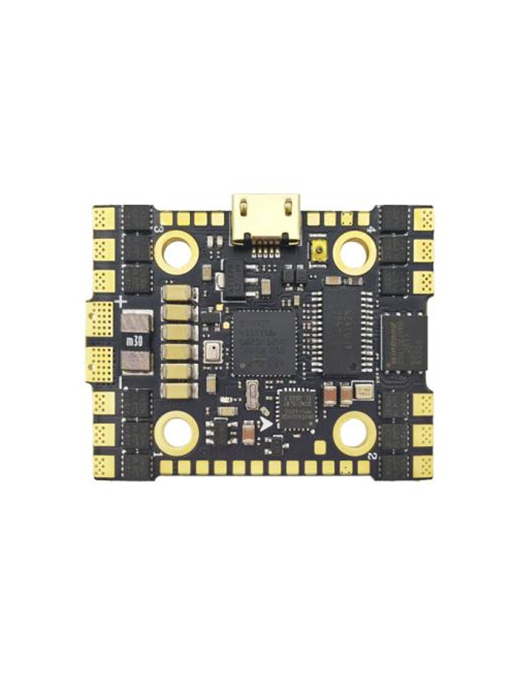

Flight control parameters

CPU: STM32F411CEU6

IMU: MPU6000

OSD: AT7456E

Barometer: BMP280

BEC: 5V/3A ; 9V/2.5A

LED: supports WS2812 and other programmable

Sensor: built-in current sensor

built-in barometer

Firmware version: HAKRC F411D

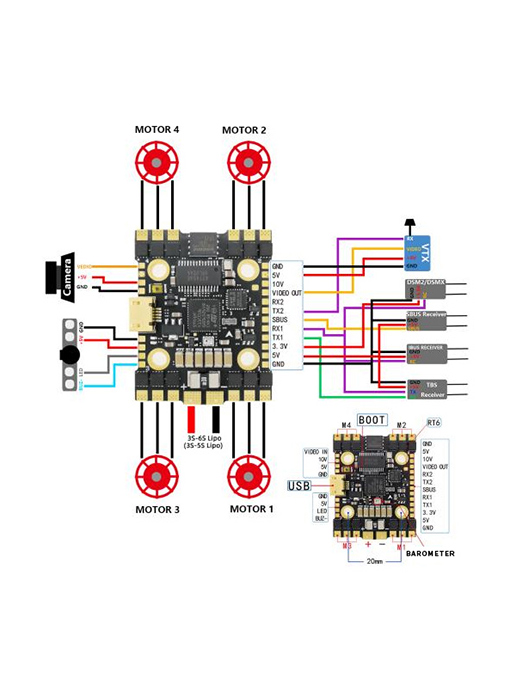

Receiver: Frsky / Futaba / Flysky / TBS Crossfire / DSMX: DSM2 Receiver

ESC parameters:

Firmware support: BLHELI_ S

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 3S-6S Lipo

Continuous current: 35A

Peak current: 40A

Firmware version: BLHELI _S (C- H-30)

Package Included:1* HAKRC 20A F4120 AIO
